Original Launch TLT240SB Economical Floor Plate Two Post Lift
$1,539.00
- Brand: Launch
- Product Code: UO05
- Availability: In Stock
- Weight: 61kg
- Views: 5819 times
Looking for help? or Get More Discount
Please contact Whatsapp: WhatsApp:+13399708796
Please contact Whatsapp: WhatsApp:+13399708796

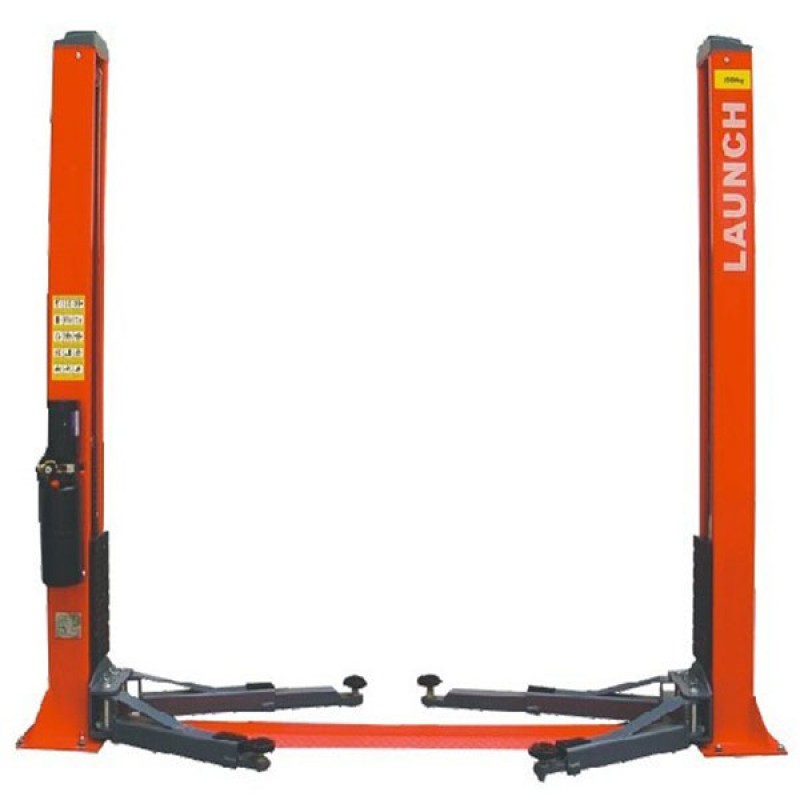

Launch TLT240SB Economical Floor Plate Two Post Lift
Functions and Features:
Top limit switch, effectively protecting the vehicle from overhead collision.
Functions and Features:
Top limit switch, effectively protecting the vehicle from overhead collision.
The cable and oil pipe are fully concealed, with decent and elegant appearance.
Designed based on the international standard, meeting the demand of the garage and workshop.
Dual hydraulic cylinders drive, stable lifting and lowering.
Electromagnetic full-scope safety lock.
Lowering electrically, safe and simple in operation.
Adopt two steel cables for equalization, force two carriages to move synchronously, and effectively prevent the vehicle from tilting.
Lowest height of lifting pad is 110mm, good for repairing low chassis or low profile car.
Launch TLT240SB Economical Floor Plate Two Post Lift Specification
Launch TLT240SB Economical Floor Plate Two Post Lift Specification
Capacity 4 TON (9000 lbs)
Lifting height 1950 mm (76.8inch)
Lifting time 50 Sec
Lowering time 40 Sec
Motor power 2.2 kw
Passing width 2486 mm (97.9 inch)
Overall width 3370 mm (132.7 inch)
Overall height 2860 mm (112.6 inch)
Noise:
Working noise: ≤80dB(A)
Power unit:
Working pressure: 16MPa (TLT235SBA)
18MPa (TLT240SBA)
Electrical parameters of the machine:
Motor:
Three phase: 230V/60Hz 2.2kw; 380V/50Hz 2.2kw
Single phase: 110V/60Hz 2.2kw; 220V/60Hz 2.2kw
220V/50Hz 2.2kw
Environmental Requirement
Working temperature: -5°C ~+40°C
Transport/storage temperature: -5°C ~+40°C
Relative humidity: Temperature +30°C, relative humidity 80%
Height above sea level: No more than
Packing List:
1set x TLT240SB
