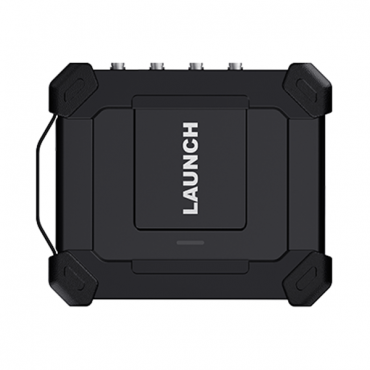

LAUNCH X431 O2-2 Scopebox Oscilloscope (4 Channels) analyze data Solving Complex Electrical Faults

LAUNCH X431 O2-2 Scopebox Oscilloscope (4 Channels) analyze data Solving Complex Electrical Faults for launch PAD V /PAD VII

Featuring a new design and upgraded hardware, the LAUNCH O2-2 Scopebox is a versatile and easy to use add-on module that can detects high level faults on various electrical components, such as sensors, acturators and circuits. By integrating with the X-431 series scan tools via O2-2 application, it delivers accurate and conclusive diagnostic faults that enable the shop and technician to enlarge their scan tool's functionality.

Features

•  1.Features the ability to record and playback high-resolution waveform data for future analysis.

   2.One key enable function allows users to capture a particular waveform which makes the process 70% more efficient as compared to other scopes.

   3.Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.

   4.Ability to input names and characters directly by clicking on the virtual keyboard, this operation streamlines the process and contributes to 90% efficiency.

   5.Use the zoom in/out feature to review precise details.

   6.Customizable personal system settings that can be saved as configuration files for viewing.

   7.The self-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy.

   8.Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.

   9.Multiple automotive tests include circuits, sensors, actuators, ignition tests and more.

•


  Specification




• Channels	4
  Bandwidth	100MHz
  Rising Time	3.5ns (typical)
  Accuracy	±3%
  Input Impedance	1M ±1.5%
  Input Type	Single-ended, BNC Connector
  Input Coupling	DC, AC
  Overload Protection	±200V on single input
  Timebase Ranges	1ns~1ks (1 Channel) 1ns~1ks (2 Channels) 1ns~1ks (4 Channels)
  Vertical Resolution	8bits
  Buffer Memory	10M (for 4 Channels)
  Power Interface	USB port, DC IN port
  Data Exchange Via	USB
  Trigger Mode	Normal, Auto and Single SEQ
  Advanced Triggers	Edge, Pulse width
